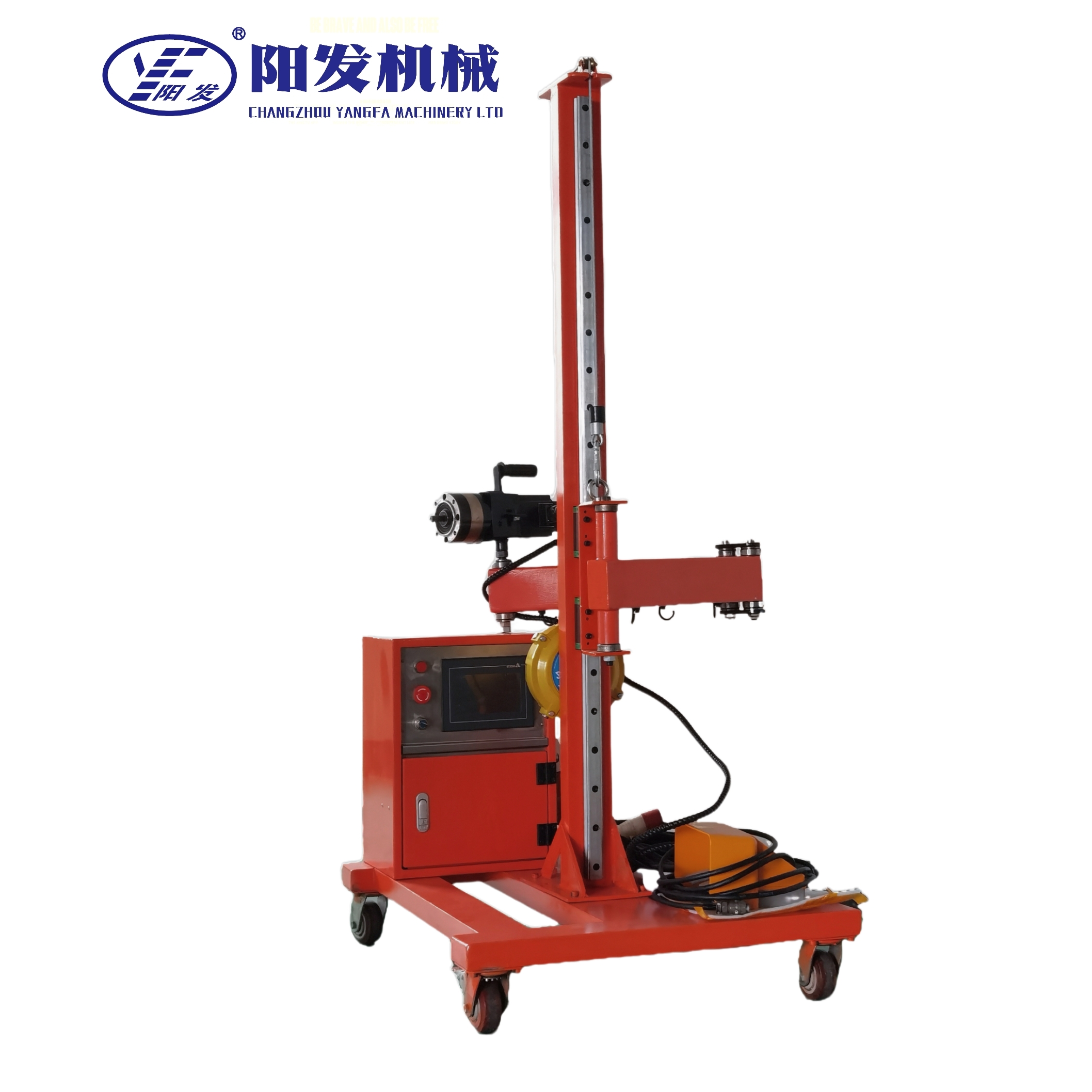

机械胀管机 YFJ-T80 技术简介
Mechanical Tube Expander System YFJ-T80 Technical Introduction
型号规格 | Model specification
型号: YFJ-T80
类型: 机械胀管机
设计: 紧凑型高扭矩机电驱动系统
控制: 基于PLC的智能界面，支持参数预设存储
Model: YFJ-T80
Type: Mechanical Tube Expander System
Design: Compact high-torque electromechanical drive system
Control: PLC based intelligent interface, support parameter preset storage
胀接原理 | Expansion Principle

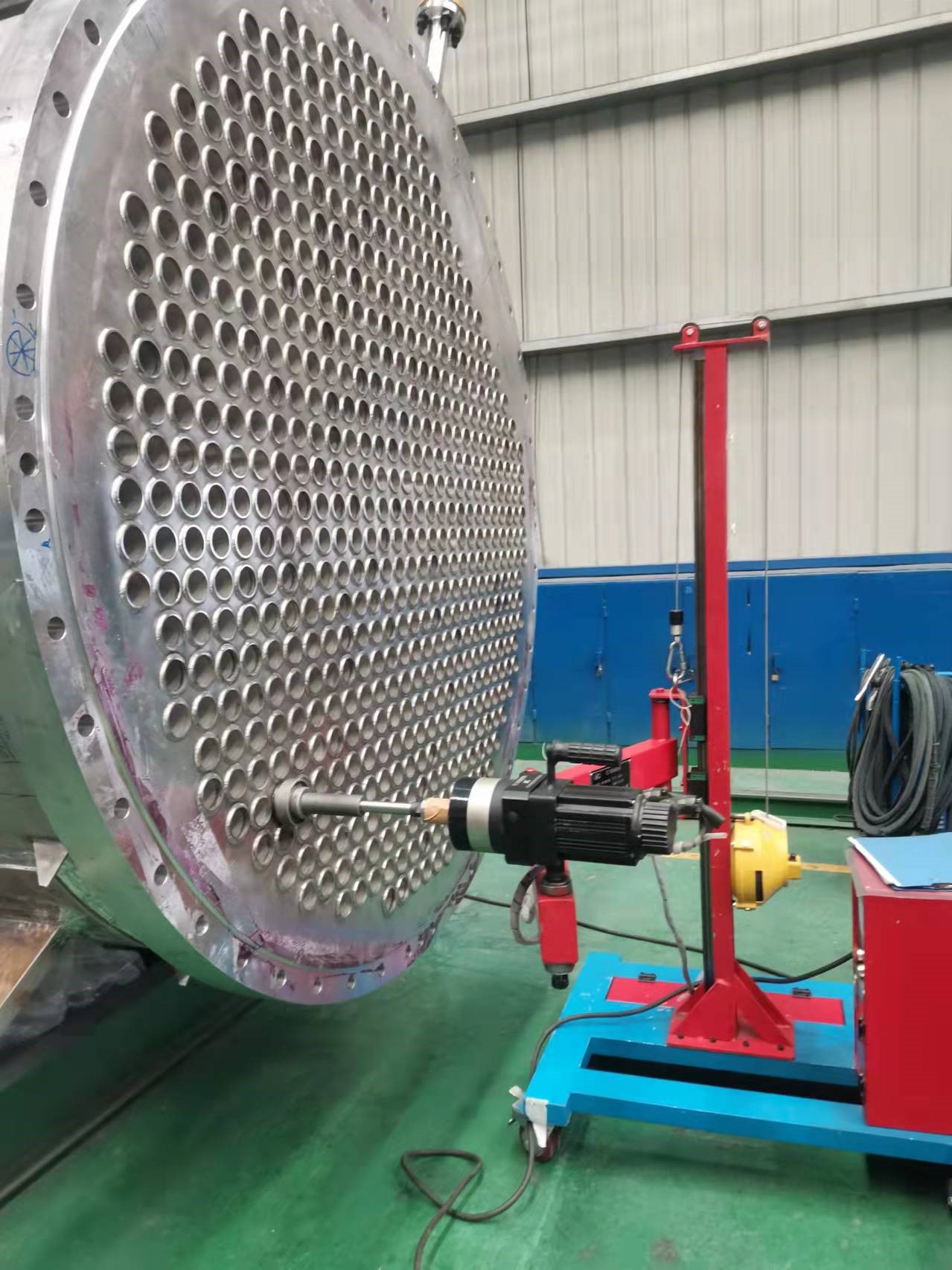

YFJ-T80采用旋转机械胀接机构，由精密齿轮驱动。其机械胀管器配备硬化处理的胀杆和弹性环，通过可控旋转扭矩产生径向力，迫使管壁发生塑性外扩变形，与管板孔形成过盈配合。
关键技术包括：
1.多滚轮同步接触确保径向均匀扩张。
2.扭矩反馈系统防止过胀，保持±0.05mm尺寸精度。
3.弹性环在胀接后自动收缩胀管器，实现快速退模。
The YFJ-T80 utilizes a rotary mechanical expansion mechanism driven by precision gears. The Mechanical Expander Head, equipped
with hardened Expanding Rods and Spring Rings, generates radial force through controlled rotational torque. This forces the tube wall
to plastically deform outward, creating an interference fit with the tubesheet bore.
Key features include:
1.Uniform radial expansion ensured by synchronized multi-roller contact.
2.Torque feedback system prevents over-expansion, maintaining ±0.05mm dimensional accuracy.
3.Spring Ring automatically retracts the Expander Head post-expansion for rapid tool extraction.
主要技术参数 | Main technical parameters
序号/NO. | 名称/Name | 描述/Description. |
1 | 型号/Model | YFJ-T80 |
2 | 最小扭矩/Minimum torque | 20 N·m |
3 | 最大扭矩/Maximum torque | 200 N·m |
4 | 最大转速/Maximum speed | 300 rpm |
5 | 工作面积/Working surface area | 1000mm*1500mm |
6 | 移动方式/Moving mode | 轮式/Wheeled |
7 | 控制/Control | PLC |
8 | 定位/Positioning | 三个自由度/Three degrees of freedom |
9 | 电源/Power supply | 380V/50Hz |
10 | 胀管范围/Expansion range | Φ12~Φ108 |
配套使用的机械胀头
Supporting the use of mechanical expansion head
【机械胀头规格型号较多，价格差距非常大，下单前请可客服沟通确认！】
【Mechanical expansion head specifications more models, the price gap is very large, before placing an order, please communicate with customer service to confirm!】
