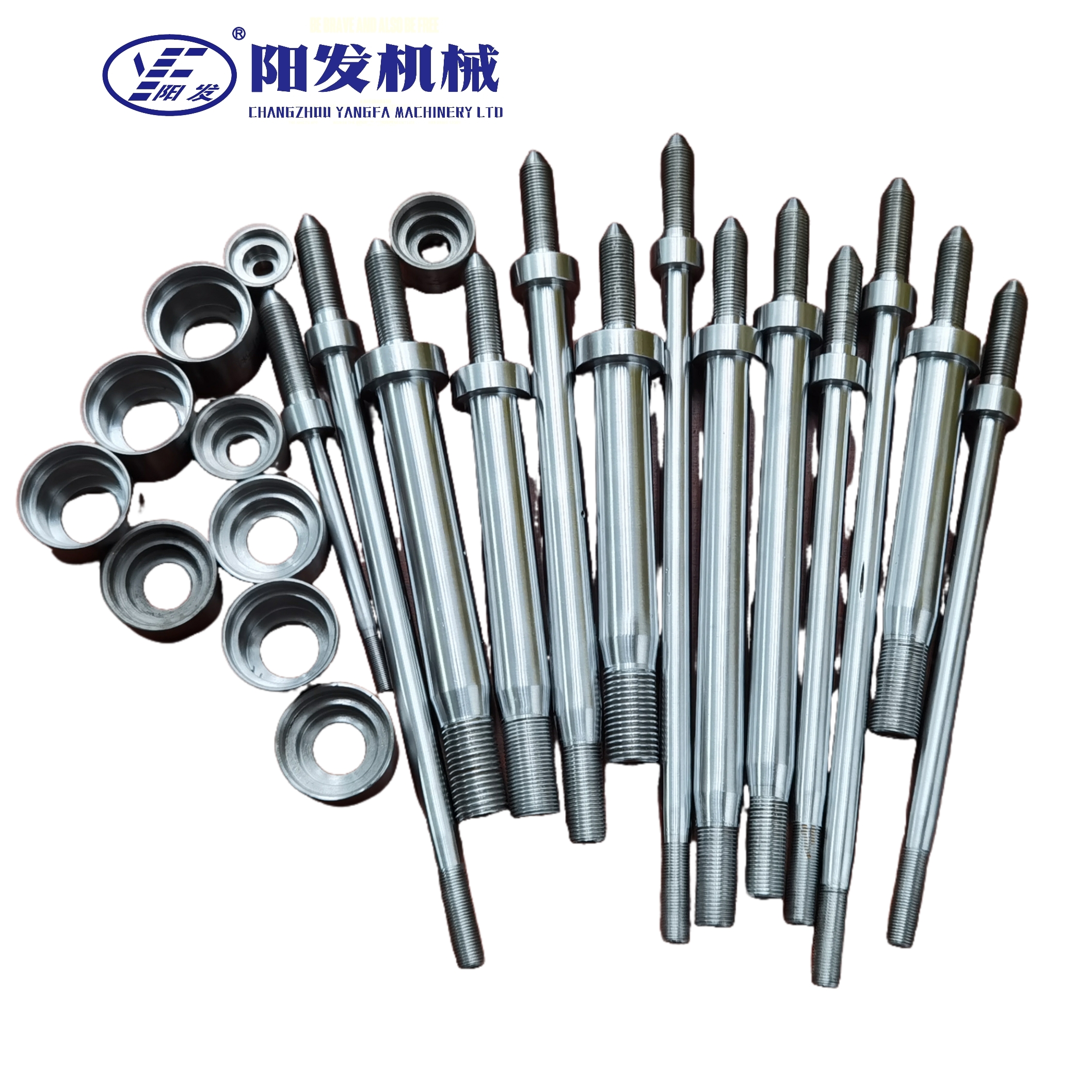

胀杆产品简介
Expanding rod product introduction
产品概述 | Product Overview
胀杆是液压/机械胀管设备的核心传力部件，负责将轴向驱动力转化为径向扩张力，实现管材与管板的高精度过盈连接。采用高硬度工具钢
（如H13、DC53）或硬质合金（WC-Co）制成，经真空热处理与表面强化（氮化钛/TiN涂层、DLC涂层），确保在极端压力（≤600 MPa）
与高频冲击下的抗磨损性与抗疲劳性。
Expanding rod is the core force transmitting component of hydraulic/mechanical pipe expanding equipment, which is
responsible for converting the axial driving force into radial expanding force and realizing the high precision interference
connection between pipe and tube plate. It is made of high hardness tool steel (e.g. H13, DC53) or cemented carbide (WC-Co),
vacuum heat-treated and surface-strengthened (titanium nitride/TiN coating, DLC coating), to ensure anti-wear and anti-fatigue
under extreme pressure (≤600 MPa) and high-frequency impact.
核心功能 | Core Functions
1.精准力传递：通过多级锥面或滚柱结构，将轴向推力均匀转化为径向扩张力，胀接同心度误差≤0.02mm。
2.自适应管型：阶梯式/多锥度设计适配异形管（椭圆管、波纹管）与内螺纹管。
3.长寿命保障：表面粗糙度Ra≤0.2μm，硬度HRC 58-62，循环寿命≥50,000次。
1.Precise force transfer: Through multi-stage taper or roller structure, the axial thrust force is uniformly converted into radial
expansion force, and the error of expansion concentricity is ≤0.02mm.
2.Adaptive tube type: stepped/multi-taper design is suitable for shaped tubes (elliptical tubes, corrugated tubes) and internally
threaded tubes.
3.Long life guarantee: surface roughness Ra≤0.2μm, hardness HRC 58-62, cycle life≥50,000 times.
定制化服务 | Customization
胀杆支持全参数工程定制，满足特殊工况需求
标准件72小时交付，非标件10-20天（支持图纸确认→试制→批量生产全流程）。
Expanding rod supports full-parameter engineering customization to meet the needs of special working conditions
72 hours delivery for standard parts, 10-20 days for non-standard parts
(support the whole process of drawing confirmation → trial production → mass production).
