挡圈产品简介
Position ring product introduction
产品概述 | Product Overview

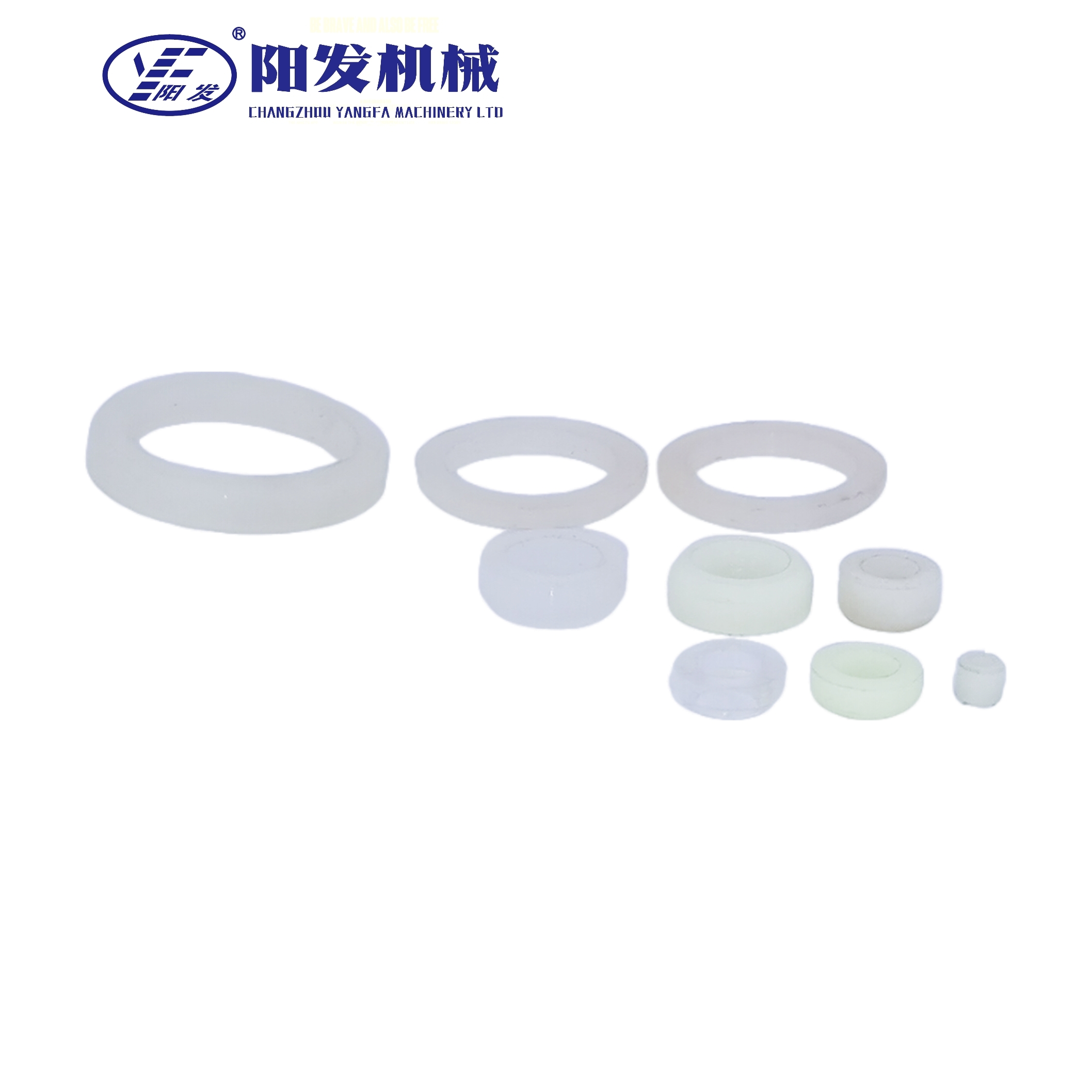

橡胶挡圈是一种用于液压/机械胀管设备的密封与缓冲组件，兼具轴向定位与压力均衡功能。采用高性能弹性体（如氟橡胶FKM、
氢化丁腈橡胶HNBR、硅橡胶VMQ）制成，通过模压或注塑工艺成型，适用于存在振动、冲击或介质腐蚀的胀接场景。
Position ring is a sealing and cushioning component for hydraulic/mechanical expansion equipment, with both axial
positioning and pressure equalization functions. It is made of high-performance elastomers (e.g., fluorine rubber FKM,
hydrogenated nitrile butadiene rubber HNBR, silicone rubber VMQ), molded or injection molded, and is suitable for
expansion scenarios where there is vibration, shock, or media corrosion.
核心功能 | Core functions
1.轴向缓冲：吸收胀接过程中的机械冲击，降低设备振动噪音（降噪≥15 dB）。
2.动态密封：防止液压油/冷却剂渗入管板间隙，污染工作介质。
3.误差补偿：弹性变形适配管板孔±0.2mm的加工公差。
1. Axial cushioning: absorbs mechanical shocks during the expansion process and reduces equipment vibration
noise (noise reduction ≥15 dB).
2. Dynamic sealing: prevent hydraulic oil/coolant from penetrating into the gap between the tube plate and
contaminating the working medium.
3. Error compensation: elastic deformation adapts to the processing tolerance of ±0.2mm of the tube plate hole.
定制化服务 | Customized service
橡胶挡圈支持定制
标准件24小时发货，非标定制产品7-15天
Rubber Position ring support customization
Standard parts shipped in 24 hours, non-standard customized products 7-15 days
选择橡胶挡圈的三大优势 | Three major advantages of choosing a rubber Position ring
1.多功能集成——单组件实现密封、缓冲、误差补偿。
2.介质兼容性——适配水、油、气、化学介质等多场景。
3.经济高效——低成本替换金属挡圈，减少管板精加工需求。
1.Versatile integration - single component for sealing, cushioning, and error compensation.
2.Media compatibility - suitable for water, oil, gas, chemical media and other scenarios.
3.Cost-effective - low-cost replacement of metal Position rings, reducing the need for tube sheet finishing.
