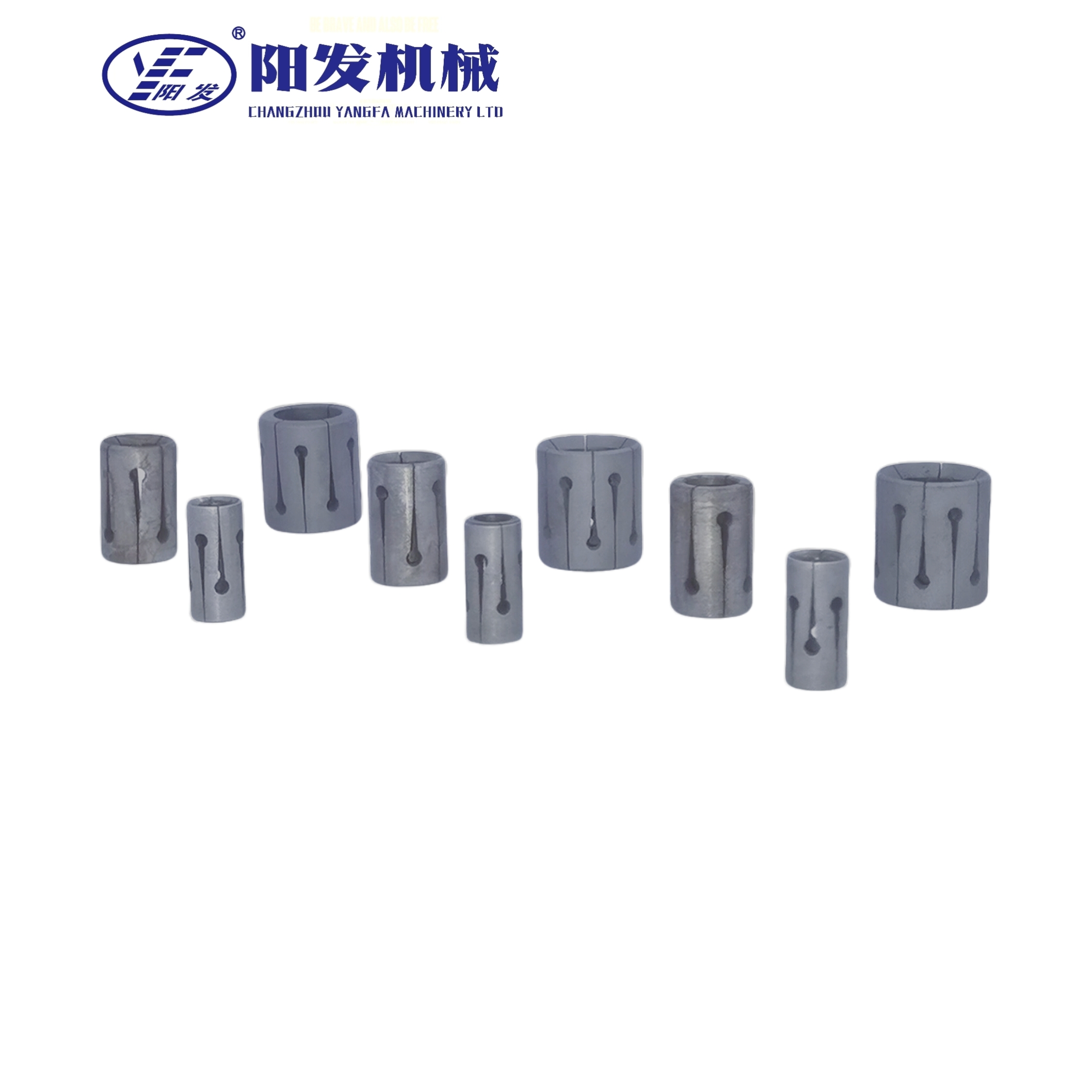

弹性环产品简介 | Spring ring product introduction
产品概述 | Product Overview
弹性环是液压胀管器的核心功能组件，专为快速退模与径向力均衡控制设计。采用高弹性合金材料（如17-7PH不锈钢、
Inconel 718）与精密热处理工艺制造，确保在超高压（≤500 MPa）与高频次（≥10万次循环）工况下的抗疲劳性
与尺寸稳定性。
Spring ring is the core functional component of Liquid Bag Hydraulic Expander Head, designed for quick demolding and radial
force equalization control. It is made of high elastic alloy materials (such as 17-7PH stainless steel, Inconel 718) and precision
heat treatment to ensure fatigue resistance and dimensional stability under ultra-high-pressure (≤500 MPa) and
high-frequency (≥100,000 cycles) working conditions.
核心功能 | Core Functions
快速退模：胀接完成后，弹性环通过预置形变自动收缩，实现液袋或胀杆的零卡滞退出。
压力均衡：补偿管材塑性变形后的回弹差异，确保胀接区域全周向过盈量一致。
过载保护：当系统压力异常时，弹性环优先发生可控变形，保护胀管器主体结构。
Rapid demolding: After the expansion is completed, the Spring ring automatically shrinks through pre-set deformation, realizing zero-halting withdrawal of the Liquid bag or Expanding rod.
Pressure equalization: Compensates for the difference in resilience after plastic deformation of the pipe, ensuring a
consistent circumferential excess in the expansion area.
Overload protection: When the system pressure is abnormal, the Spring ring will preferentially undergo controlled
deformation to protect the main structure of the expander.
定制化服务 | Customization
弹性环可根据客户需求进行全维度工程适配：
1.尺寸定制：内径φ2mm至φ200mm，支持非标孔径与截面形状（矩形/梯形/异形）。
2.快速交付：
标准件48小时发货，定制件7-15天（提供图纸确认→试制→批量生产全流程服务）。
Spring ring can be customized according to customer needs:
1.Size customization: inner diameter φ2mm to φ200mm, support non-standard hole diameter and cross-section shape
(rectangular/trapezoidal/shaped).
2.Fast delivery:
48 hours shipment for standard parts, 7-15 days for customized parts
(provide full process service of drawing confirmation → trial production → mass production).
